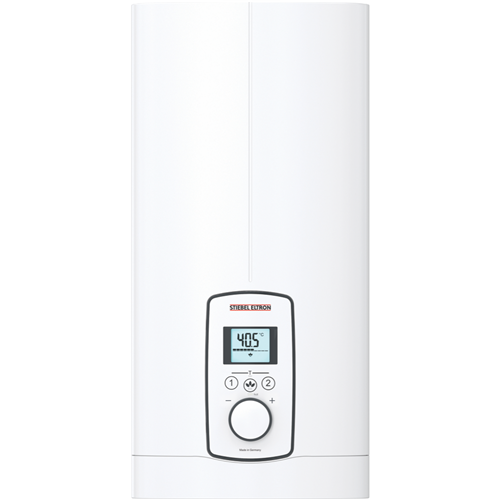

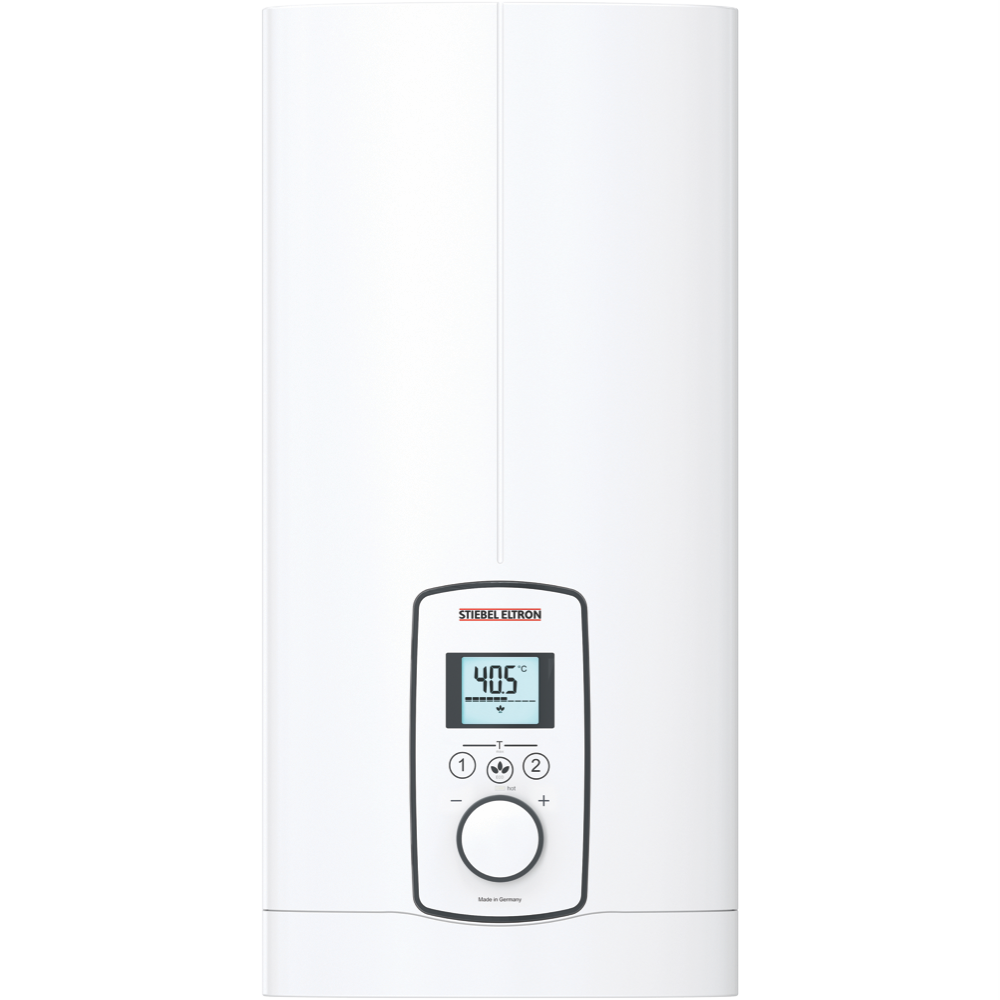

STIEBEL 14.5KW 50Deg 3 Phase Instant Water Heater

DEL 13 PLUS
50086455

Description
The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply) e.g. simultaneous supply to bathroom and kitchen. Sealed unvented pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray flue or ventilation. Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 20 to 50°C via rotary selector temperature adjustment for showers in 0.5 °C increments. Backlit multi-function display to show set temperature current power consumption status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations. Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems). Rapid bare wire heating system suitable for hard and soft water. Electronic safety concept with air bubble detection.
Key Features
  • Electric instant water heater for hot water supply
  • 14.5 Kilowatt power, 3 phase, 20-50%26#176;C temperature range
  • 2.5 Litre per minute flow rate
  • White finish, 116mm depth, 225mm width, 466mm height
Brand STIEBEL
Product Height (mm) 466
Product Width (mm) 225
Product Depth (mm) 116
Colour White
Temperature (Celsius) 20-50%26#176;C
Flow Rate (L/min) 2.5
Fuel Type Electric
Installation AS/NZS3500.4.2 %26amp; local requirements
Product Grade Retail
Product Height (mm) 466
Product Width (mm) 225
Product Depth (mm) 116
Box Dimensions
