Fujitsu C9.5kW H10.3kW Reverse Cycle Split System

SET-ASTH34KMTD-NXT
50087949

Description

The C9.5kW H10.3kW Reverse Cycle Split System cools up to 9.5kW and heats up to 10.3kW for large open-plan living areas.

This Fujitsu split system is designed for single-room use making it suitable for spacious lounges or open-plan zones where airflow is unobstructed. The unit modulates output to match changing conditions maintaining comfort in both summer and winter. Human Sensor Control and a 24-hour timer help limit unnecessary operation supporting consistent climate control for busy households.

Wi-Fi connectivity enables remote temperature management while the Apple-Catechin and long-life ion deodorisation filters help maintain air quality. The maximum airflow of 1372m3/hr ensures rapid cooling or heating and the included remote control offers user-friendly operation. The indoor unit operates at 51dBA keeping noise levels low during use.

The product has a 3.5 star energy rating for cooling in an average climate with estimated annual energy consumption of 763kWh. Heating in an average climate is rated at 2.5 stars with estimated annual energy consumption of 1366kWh.

Model SET-ASTH34KMTD-NXT in white comes with a 5 year manufacturer's warranty.

Key Features
  • 9.5kW cooling and 10.3kW heating capacity
  • 4 star cooling rating, 24 hour timer, Wi-Fi control
  • Apple-Catechin and ion deodorisation filtration
  • Wi-Fi enabled for smart home integration

General Information

Colour White
Manufacturer's Warranty 5 Year
What's In The Box Wireless remote controller, WiFi Control
Additional Features All DC, Auto Shut Louvre, Blue Fin Heat Exchanger
Brand Fujitsu
Colour White
Manufacturer's Warranty 5 Year
What's In The Box Wireless remote controller, WiFi Control
Additional Features All DC, Auto Shut Louvre, Blue Fin Heat Exchanger

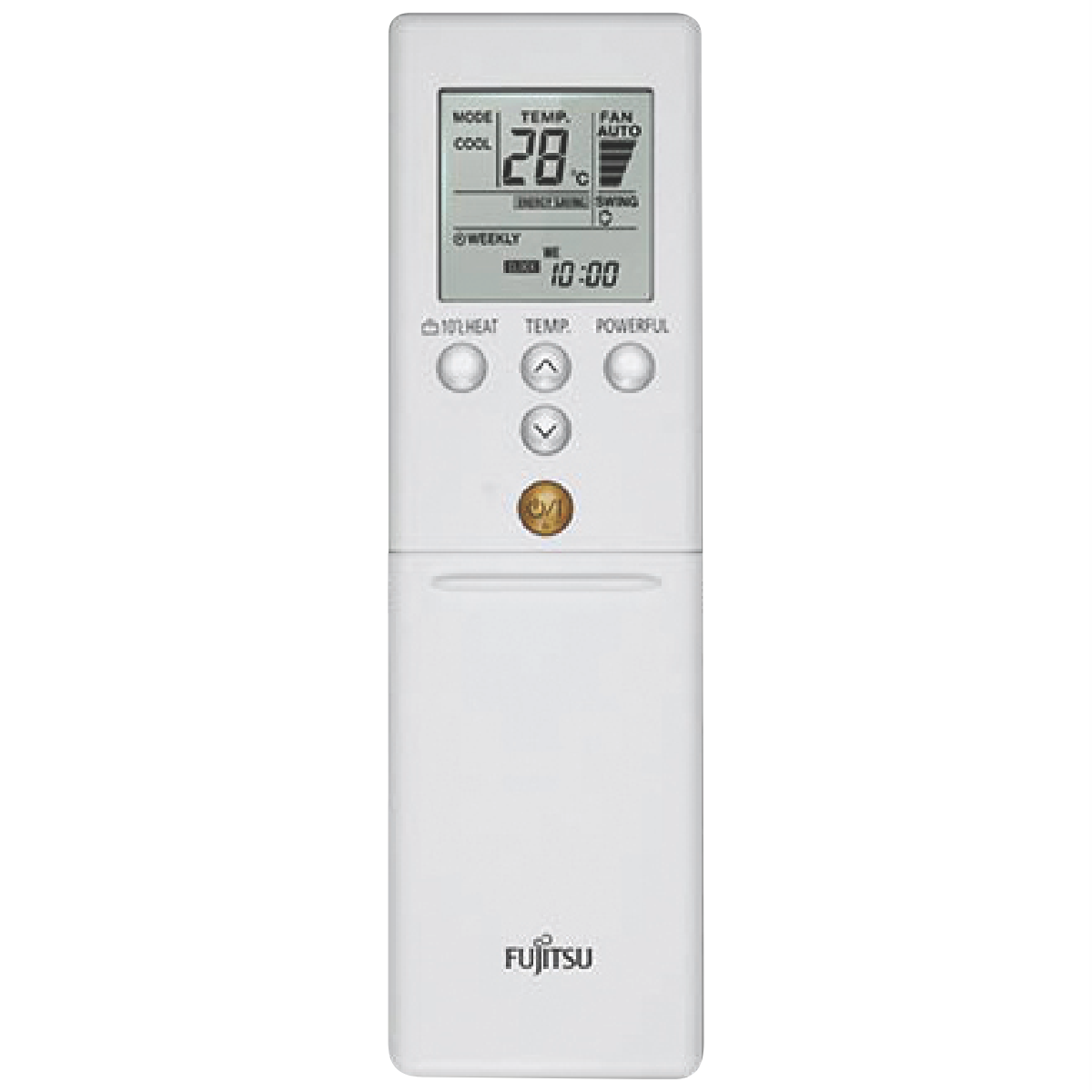

Controls Remote Control
Energy Consumption (kWh/yr) Average Cooling: 763, Average Heating: 1366
Filters Apple-Catechin, Long-Life Ion Deodorisation
Human Sensor true
Indoor Unit Depth (mm) 280
Indoor Unit Height (mm) 340

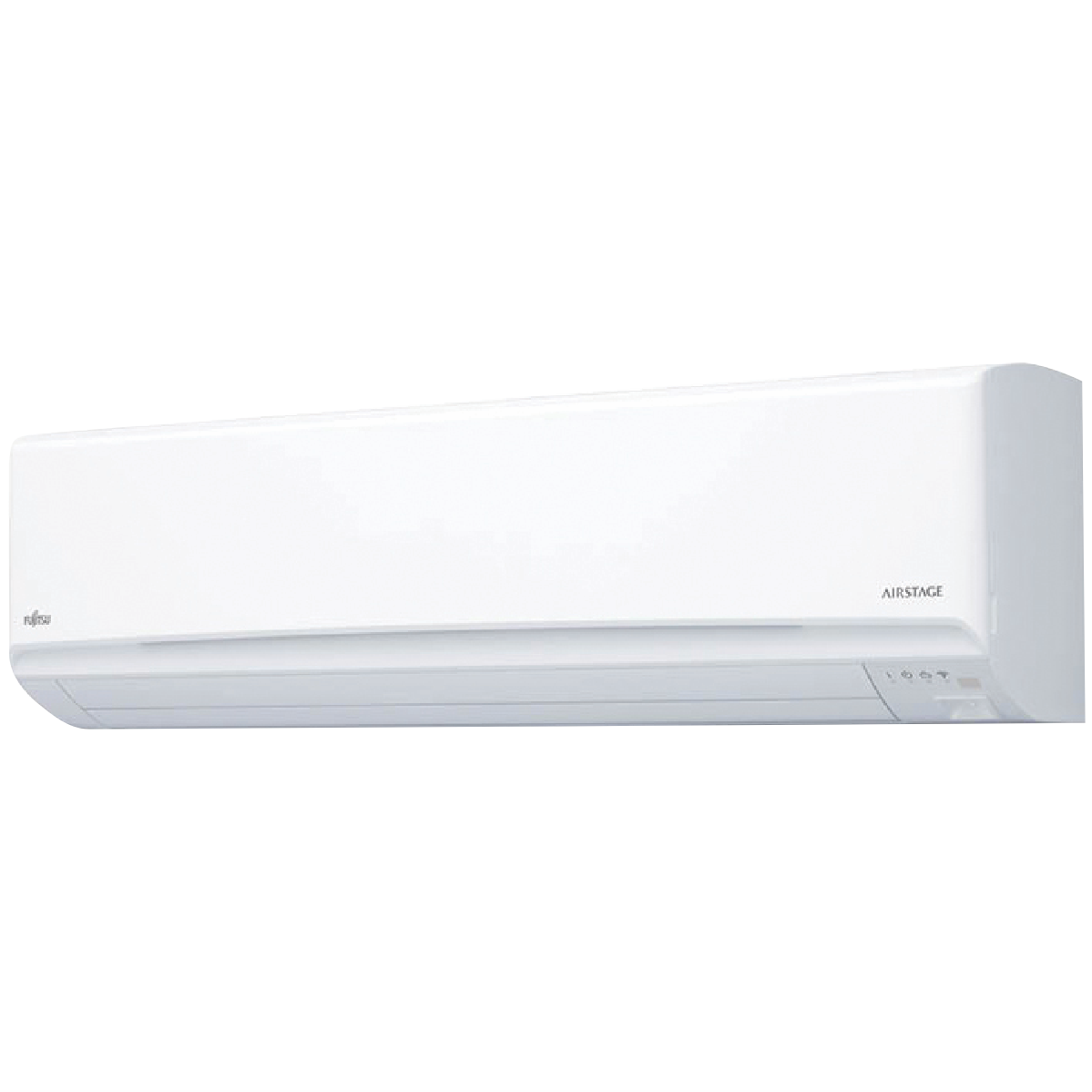

Indoor Unit Model No. ASTH34KMTD
Indoor Unit Weight (kg) 16.5
Indoor Unit Width (mm) 1150
Installation This product contains no user-serviceable parts. Always consult authorized service personnel for repairing, installation, and relocation of this product. Improper installation or handling will cause leakage, electric shock, or fire.
Outdoor Unit Depth (mm) 320
Outdoor Unit Height (mm) 998

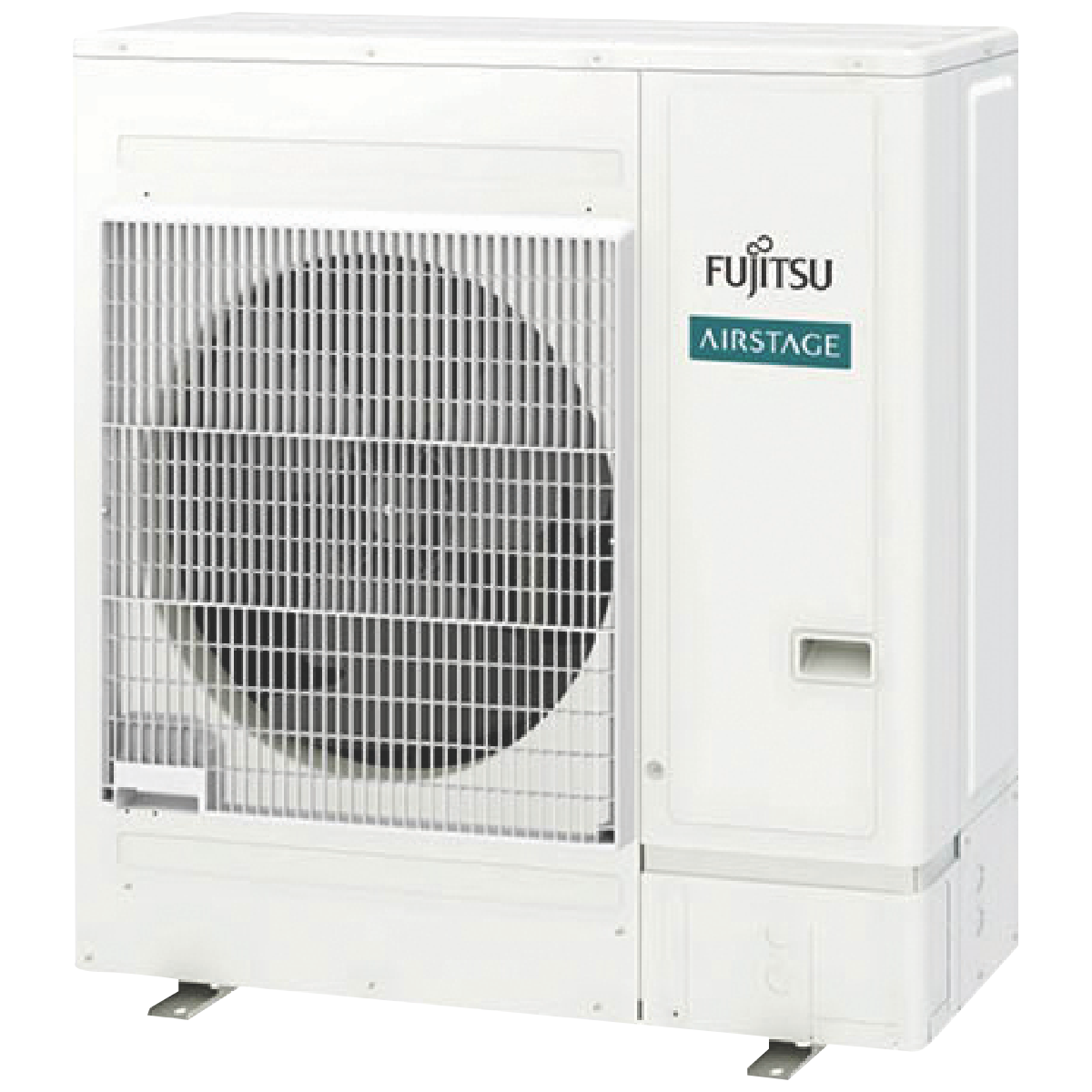

Outdoor Unit Model No. AOTH34KMTD
Outdoor Unit Weight (kg) 62
Outdoor Unit Width (mm) 940
Timer Yes - 24 Hours
Type Reverse Cycle Air Conditioner
Victorian Home Heating and Cooling Upgrade Product false
Wi-Fi Enabled true
Product Grade Retail
Box 1 Height (mm) 1176
Box 1 Width (mm) 1027
Box 1 Depth (mm) 445
Box 1 Weight (kg) 71
Box Dimensions
